Geothermal drilling with the high-power laser

Harnessing the earth's heat to generate renewable energy is worthwhile. Geothermal wells in deeper layers of the earth's crust are particularly profitable. However, with in-creasing depth, the costs of drilling rise disproportionately due to wear of the drilling tools and low rates of penetration - and thus also the financial risk. The Fraunhofer IPT is using a combination of water and a high-power laser to develop a drilling method that can significantly reduce the costs of deep geothermal drilling and thus produce a more cost efficient supply of geothermal energy in Germany.

With the high-power laser through hard rock

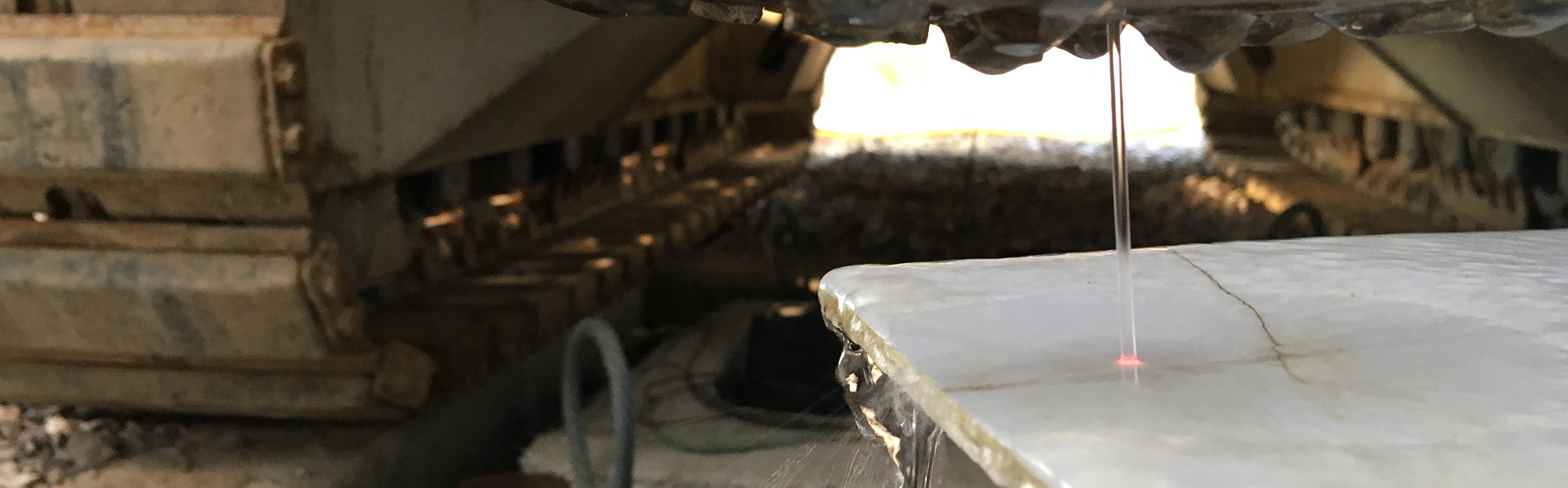

In addition to a conventional mechanical drill head, a water-guided high-power laser beam is used. In order to drill hard rock such as granite at a reasonable cost, a laser power of up to 30 kW is required, which is introduced into the borehole in a precise manner by the laser-water-jet and therefore supports the mechanical drilling process. In laboratory tests, the Aachen and Bochum engineers were able to demonstrate a weak-ening of quartzite and granite with an initial strength of more than 150 MPa by 40 to 80 percent. In this way, the wear of the drilling tool is reduced to a minimum - with faster ROP at the same time. The water jet not only guides the laser beam right down to the hard rock, but also prevents contamination and damage to the sensitive laser optics.

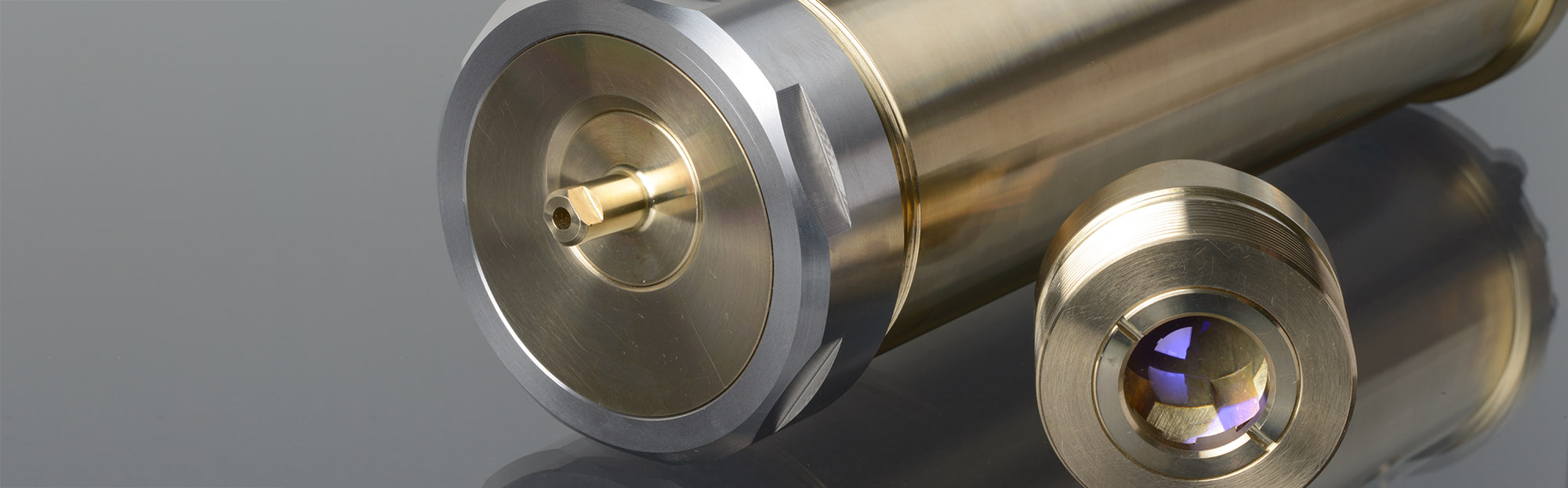

The system was developed in the "LaserJetDrilling" project and is similar to the technol-ogy that was previously only used in micromachining. The project partners now trans-ferred this technological approach to geothermal drilling on a large scale and validated the technology in mid-2018 at the Geothermal Center Bochum by conducting near-surface drilling tests in hard rock. In order to couple the laser radiation into the rotating drill string, the Fraunhofer IPT developed a special fiber optic rotary joint that allows the high laser power to be transmitted from the laser source to the drill head with virtually no losses.

© Fraunhofer IPT
Test bench with integrated high-power laser for process investigation of hard rocks and high-performance materials

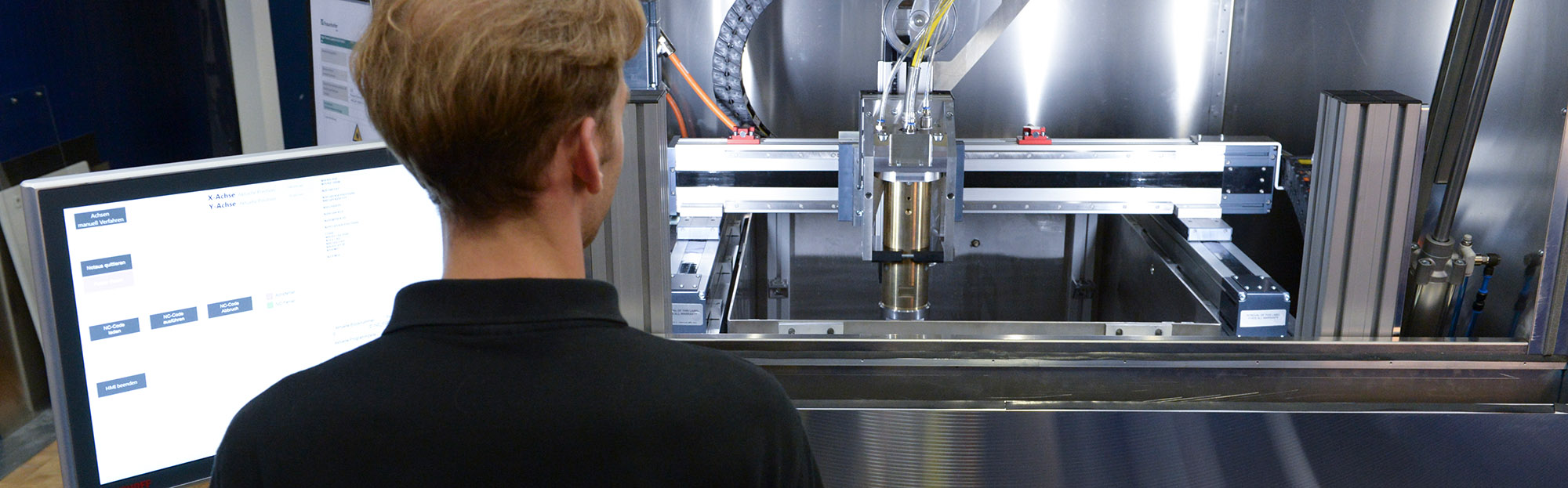

Test stand with integrated high-power laser

The Fraunhofer IPT now has a test bench with a laser head for generating the high-power laser-water-jet. This allows process investigations to be carried out not only on various types of hard rocks, but also on high-performance materials, in order to test the technology for the drilling industry and bring it to market maturity in further research projects.

Cost-effective geothermal drilling for regenerative energy production
The new drilling system can succeed in considerably reducing the costs of deep geo-thermal drilling and contribute to making geothermal energy usable as a readily availa-ble heat and power source in Germany. This form of energy can then take over part of the base load in the energy mix and supplement regenerative energy sources such as solar, wind and hydroelectric power in a comparatively environmentally friendly and low-risk way compared to fossil fuels and nuclear energy.

Our services at a glance

  • Process investigation of different hard rocks and high-performance materials
  • Development of high-power laser heads with laser-water-jet or with conven-tional beam guidance
  • Development of system technology for use in realistic environments
